A vast range of fibre and IP transmission systems

Fibre Transmission

The STAGE RACER product line is an ultra-flexible optical fiber transport system for outside and indoor broadcast events, it’s also a product of choice for congress and infrastructure cabling.With the ERECA unique feature for on the fly direction configurable HDSDI channels and the numerous signal transmitted along the videos (IP, Audio (Analog/AES/Madi), Serial), the stage racer is the product of choice for an affordable fast and easy event management.

The STAGE RACER 2 is a complete optical fiber transmission solution for every broadcast event, ranging from simple OB interconnect to complex star, ring or linear topology spread over a whole TV compound.
It also supports long distance transmission for remote production capacity allowing content exchange between distant locations while using dark fiber or SMPTE IP protocols.
Stage Racer 2 is designed to accept all kinds of signal on a same device without external adapter. Internally those signals can be associated together / routed / distributed to all other machines of the network.
Stage Racer 2 also offers processing capabilities with Audio Embedding/De-embedding, Audio shuffling, Audio SRC, Frame buffering, and Delays. The network can be controlled by a built-in intuitive web interface or with automation systems like Cerebrum, KSC Core, VSM, etc.

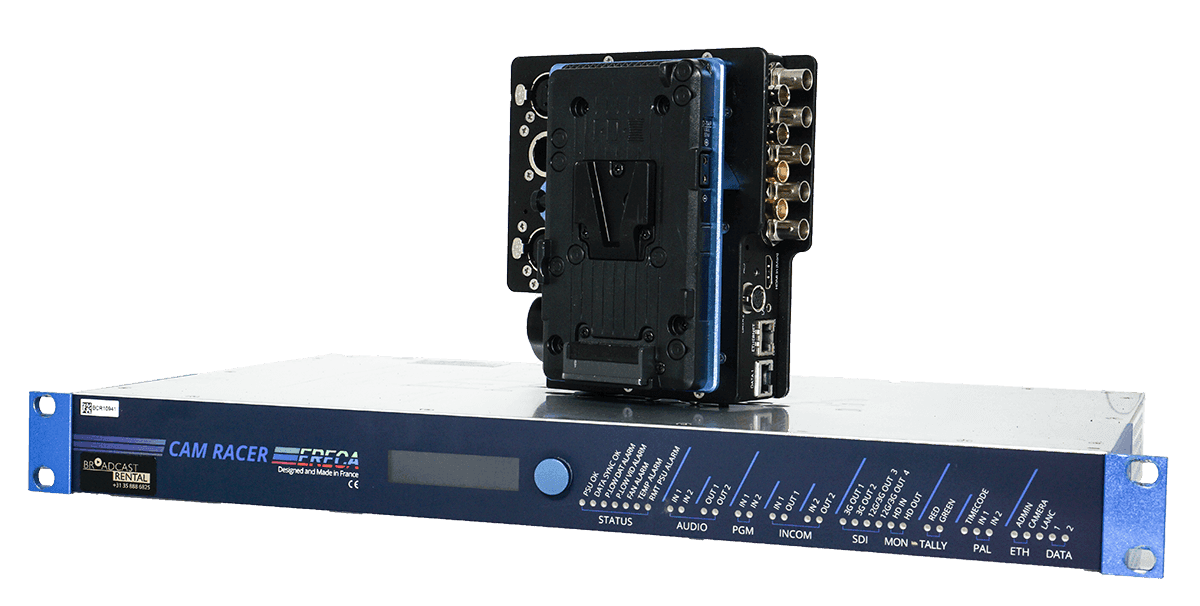

Ereca Cam Racer camera fibre transmission systemWith the Ereca Cam Racer fibre transmission system any type of camera can be used in a multi-camera Outside Broadcast, Flightpack or Cinema style production.
With the two 3G-SDI and two 12G-SDI connectors it’s possible to transport 4K/UHD signals in different variations. The two dual intercom channels allow a cameraman to communicate with the focus-puller, as well as engineering and production. Camera control signals are transported via ethernet or RS422/485. When using SONY cameras the red and green tally lights can be inserted directly into the viewfinder by the Broadcast Electronics Cue Lite system.

The system enables the antennas to be placed up to 1700m away with power on a SMPTE cable or up to 20kms if powered locally using TAC fibre. 12V power is provided for downconverters, allowing compatibility with DTC, VisLink and other manufacturer’s products. The camera control ODU (OutDoor unit) can be powered from the 12V XLR connector to control up to 4 cameras (Sony, Grass Valley, Panasonic, Hitachi, Ikegami).

Ereca Stage Racer 1, 12 HDSDI+1 PAL+16 AUDIO+8GPIO+ 1ETH+2 serial+4 AES/MADI

Ereca Stage Racer STAR2 12SDI RX/TX

Ereca Stage Racer STAR2 24SDI RX/TX

Ereca Cam Racer

Videosys RF over Fiber
